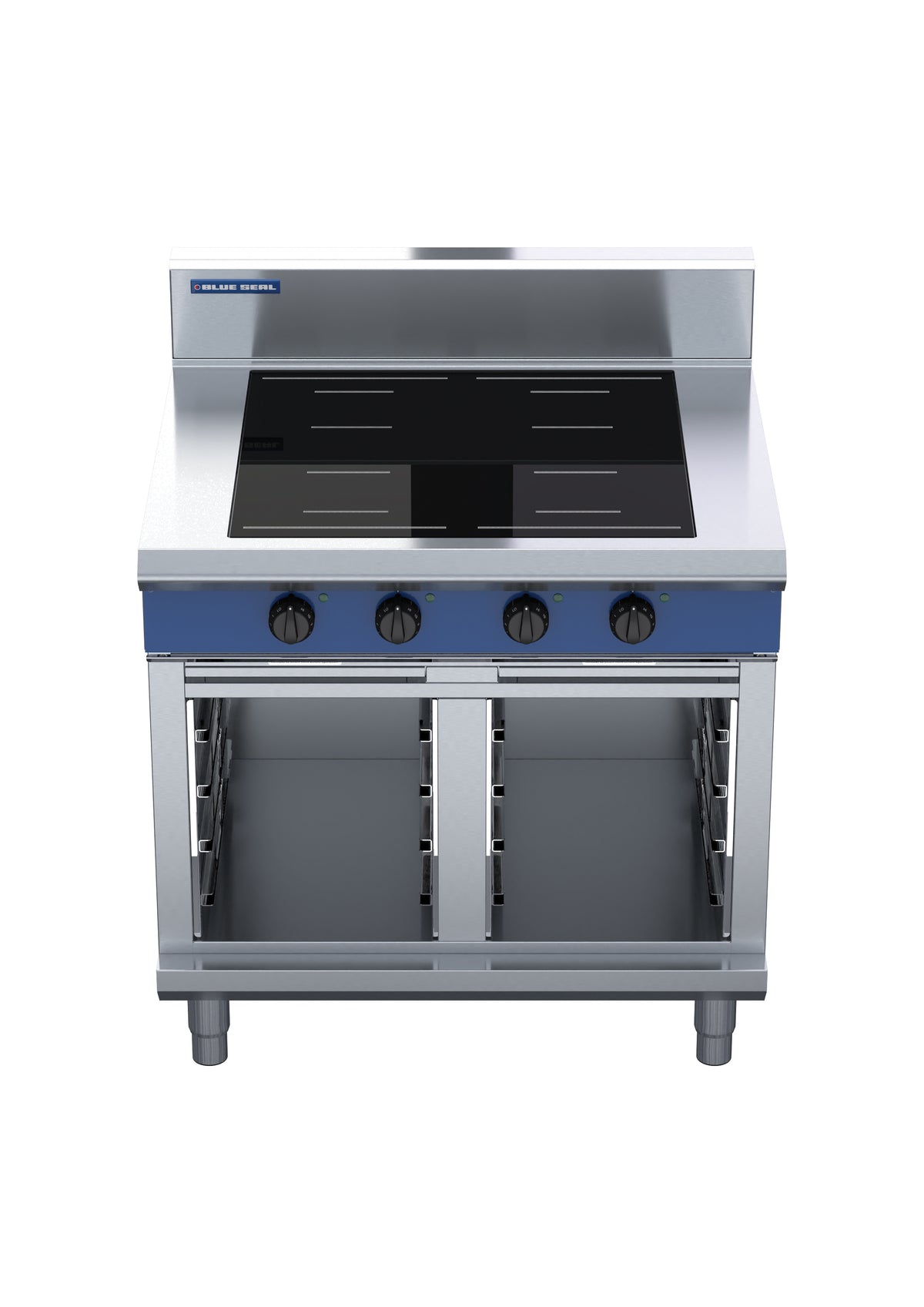

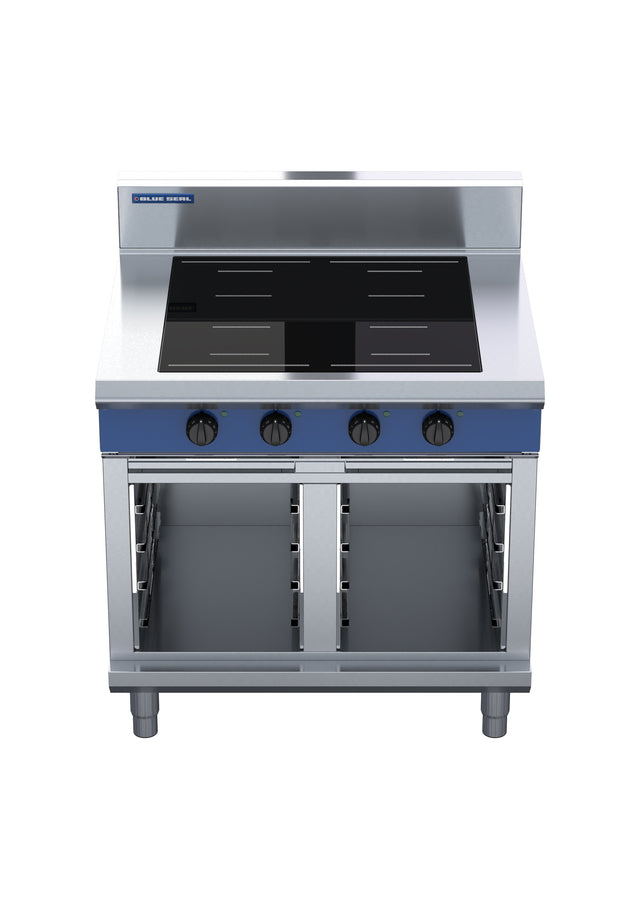

The Blue Seal Evolution IN514R5F-CB is a versatile 4-zone induction cooktop with a cabinet base, providing both functionality and convenience. It features 2 x 5kW round heating zones on the left-hand side (LHS) and 2 x 5kW full-area heating zones on the right-hand side (RHS). The cooktop includes a 6mm thick ceramic glass cooking surface with automatic pan detection that switches off the induction zone when the pan is removed, ensuring safety. The user-friendly design incorporates large control knobs with infinitely variable power controls for each induction zone, while heating ON pan detection/error indicator lights provide operational feedback. The appliance is built with heavy-duty construction for durability and is designed for easy cleaning, installation, and service. An additional option allows for a full-area induction on LHS and round induction on RHS, providing flexibility based on specific cooking needs.
Blue Seal Evolution IN514R5F-CB is a premium four-zone induction cooktop built for high-volume commercial kitchens. The 900mm wide unit delivers 5.0 kW per zone across its digital-controlled cooking surface, giving chefs precise heat management and rapid response times essential for busy service. Its robust 304 stainless steel construction and ceramic glass cooking surface are built to withstand the rigours of professional use, whilst the integrated cabinet base provides practical storage without compromising on compact footprint.
Designed for freestanding installation, this induction cooktop suits restaurants, hotels, catering facilities and institutional kitchens where reliability and consistency matter. The fan-cooled design keeps the unit operating safely during extended service periods, and the 20kW power draw (three-phase) ensures sufficient capacity for simultaneous multi-zone cooking. Whether you're searing proteins, simmering stocks or rapid boiling, the Evolution IN514R5F-CB delivers the speed and control professional kitchens demand, backed by a 12-month warranty and New Zealand engineering.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Cooking Surface Area | ø270 per zone |
| Product Weight (kg) | 75 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Cabinet Base |
| Colour | Stainless Steel |
| Door Type | Hinged |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| Splash Back | Yes (165mm) |
| Undershelf | Cabinet Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 20kW / 3P+E 28A / phase / 400-415V / 50/60Hz |
| Power Supply | 400-415 Vac / 3P+E / 50/60 Hz |
| Voltage/Phase | 400-415V / 3 Phase |
| BTU Rating | 68240 BTU/h |
|---|---|
| Burner Output | 5.0 kW per zone |
| Burner/Element Output | 5.0 kW per zone |
| Fuel Type | Electric |
| Number of Burners | 4 |
| Griddle Surface | 6mm Ceramic Glass |
|---|
| Cooling Type | Forced Air / Fan Cooled |
|---|---|
| Temperature Range | Gas |
| Control Type | Digital Induction Control |
|---|---|
| Temperature Control | Variable Power Control |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
