Blue Seal Evolution

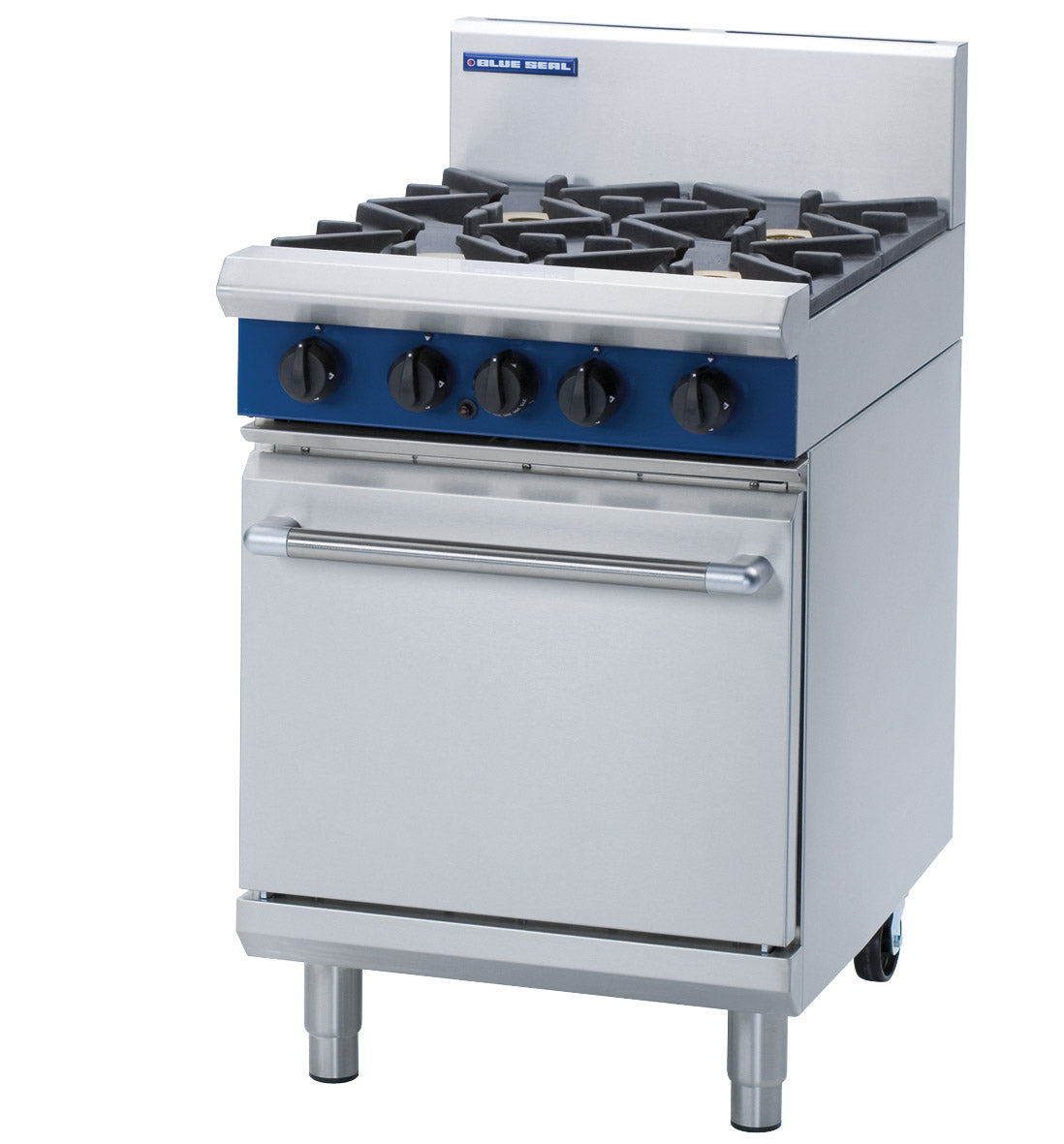

Blue Seal Evolution G505D, 4 Burner Oven Range
750 × 812 × 1085mm
$8,082
ex GST$10,537
or $191.54 +GST / week
The Blue Seal Evolution G504D is a 4-burner oven range designed for professional kitchen use. It features a 4-burner cooktop with 4 x 28MJ/hr open burners and a static oven with 1/1 GN capacity. The cooktop includes removable heavy-duty cast iron burners and vitreous enamel pot stands, providing durability and easy cleaning. The oven is equipped with a 100-270°C thermostatic control and a fully welded and vitreous enamelled oven liner for efficient and reliable baking. The unit is constructed with a heavy-duty stainless steel finish and includes flame failure protection on all burners for added safety. The drop-down door with a welded frame, cool-touch stainless steel door handle, and heavy-duty reinforced control knobs contribute to the appliance’s user-friendly design. Adjustable feet and additional rollers make installation and service easy. Overall, the Blue Seal Evolution G504D is a robust and versatile oven range suitable for professional kitchens.
Blue Seal Evolution G504D is a versatile 4-burner oven range designed for busy commercial kitchens that demand both top-surface cooking power and reliable baking capability. Built from heavy-duty 304 stainless steel, this freestanding unit combines a spacious static oven with 2/1 GN capacity and 2 shelf positions, making it ideal for restaurants, hotels, pubs and catering venues managing varied menu demands.
The four high-output burners deliver 28 kW of heating power for rapid boiling, searing and sauce work, while the static oven provides even heat distribution for consistent baking and roasting results. Simple manual knob controls ensure intuitive operation during service, and the compact 600mm width fits neatly into standard kitchen layouts without compromising functionality.
A trusted workhorse in the Evolution Series, the G504D is engineered for durability and performance in high-volume kitchens. It's available for both LPG and natural gas installations, backed by a 12-month warranty and built to New Zealand manufacturing standards that commercial operators have relied on for years.
| External (W × D × H) | 600 × 812 × 1085 mm |
|---|---|
| Capacity | 2/1 GN |
| Cooking Surface Area | 600 x 480 |
| Oven Capacity | GN 2/1 |
| Product Weight (kg) | 150 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Integrated Oven |
| Colour | Stainless Steel |
| Door Type | Drop Down |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| No. of Shelves | 2 |
| Splash Back | Yes (165mm) |
| Power Rating | 304 Stainless Steel |
|---|
| BTU Rating | 106,176 BTU/h |
|---|---|
| Burner Output | 28 kW (112 MJ/h) |
| Burner/Element Output | 28 kW (112 MJ/h) |
| Fuel Type | Gas |
| Gas type | LPG / Natural Gas |
| Gas Connection | R 3/4 (BSP) male |
| Number of Burners | 4 |
| Oven Type | Static |
|---|
| Temperature Range | Gas |
|---|
| Control Type | Manual Knob |
|---|---|
| Temperature Control | Thermostat / 110-270°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
