Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

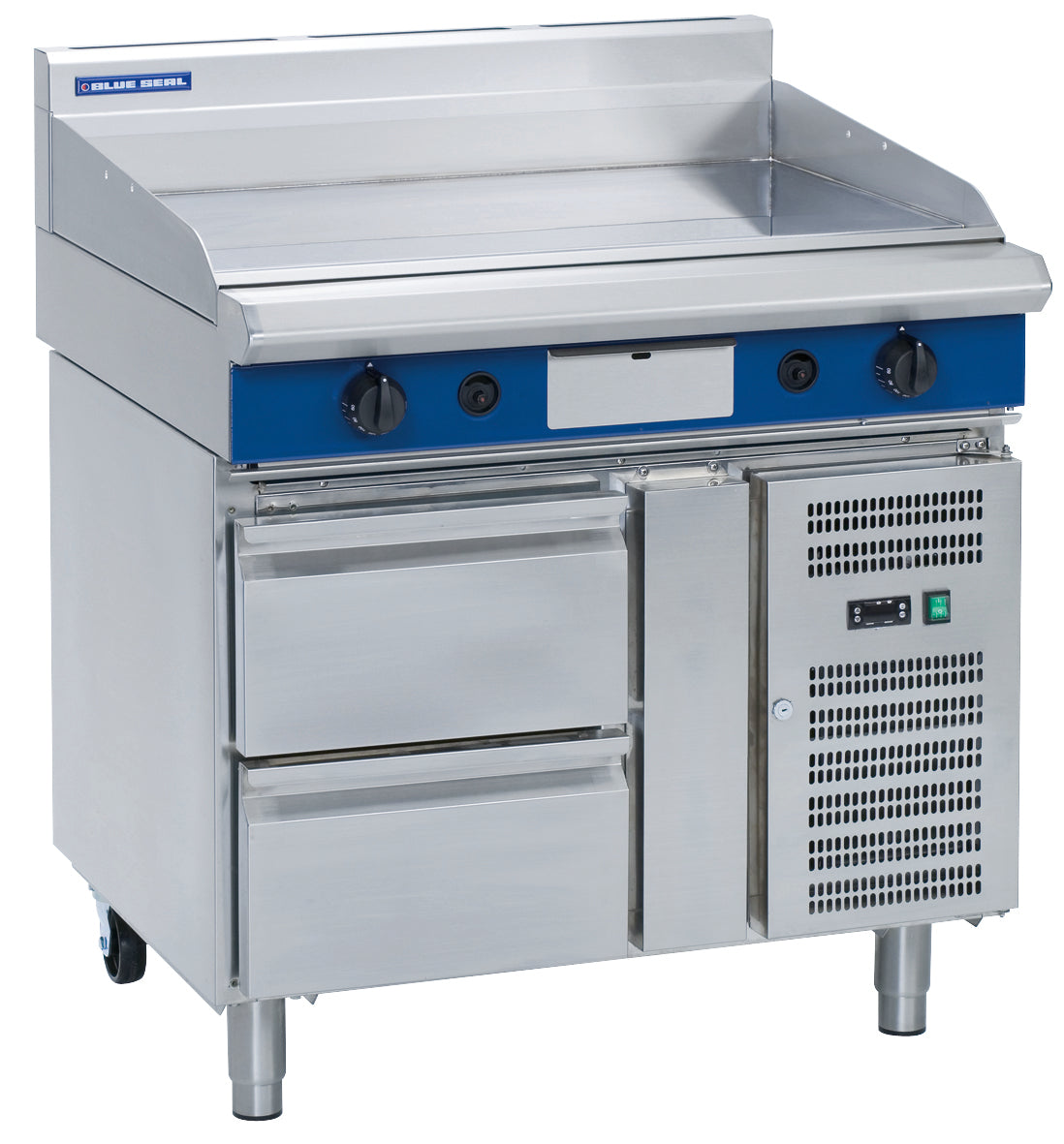

The Blue Seal Evolution GP516-RB is a versatile 900mm gas griddle on a refrigerated base, featuring an 80MJ/hr thermostatic burner system with two 90-300°C thermostat controls for precise temperature regulation. The refrigerated base maintains a temperature range of -2 to +8°C, making it suitable for tropical climates. The griddle comes with two GN 1/1 drawers with a 100mm deep pan capacity for convenient storage. With a 20mm thick griddle plate and top-weld sealed plates, it ensures durability and even heat distribution. The unit also includes a stainless steel grease drawer, heavy-duty reinforced control knobs, and a push-button piezo ignition for easy startup. It offers flexibility and stability with adjustable feet and 2 additional rollers. The appliance is designed for easy cleaning, installation, and service. Users can choose between a ribbed or chrome mirror plate based on their preferences, providing a customizable solution for various kitchen needs.
Blue Seal Evolution GP516-RB is a 900mm gas griddle engineered for high-volume cooking with integrated refrigerated storage—the ideal solution for kitchens that demand both searing performance and ingredient accessibility. Built in stainless steel and designed as undercounter equipment, it delivers professional-grade reliability without compromising bench space.
The griddle features six powerful burners with individual thermostat control, giving your team precise heat management across the cooking surface. The smooth mild steel plate heats evenly and builds seasoning over time, while the refrigerated base—rated tropical and holding two GN 1/1 drawers—keeps proteins, sauces and garnishes within arm's reach at a consistent 0–4°C.
Purpose-built for busy commercial kitchens, breakfast services, and high-turnover venues, this Evolution Series unit combines durability with smart ergonomics. It runs on LPG or natural gas, comes with digital electronic control, and carries a 12-month warranty backed by DHT Solutions' service network across Australia.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2 x GN 1/1 Drawers |
| Cooking Surface Area | 892 x 530 |
| Product Weight (kg) | 90 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Refrigerated Base |
| Colour | Stainless Steel |
| Door Type | Drawer |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Undercounter |
| Material | 304 Stainless Steel |
| No. of Doors | 2 |
| Splash Back | Yes (165mm Standard) |
| Undershelf | Refrigerated Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 1.8A / 1P+N+E 3 pin 10A plug cordset fitted / 220-240Vac / 50Hz |
| Power Supply | 220-240 Vac / 1P+N+E / 50Hz |
| Voltage/Phase | 230V Single Phase |
| BTU Rating | 51,192 BTU/h |
|---|---|
| Burner Output | 53 MJ/hr per burner |
| Burner/Element Output | 53 MJ/hr per burner |
| Fuel Type | Gas / Electric |
| Gas type | LPG / Natural Gas |
| Gas Connection | R 3/4 (BSP) male |
| Number of Burners | 6 |
| Griddle Plate Thickness | 20 |
|---|---|
| Griddle Surface | Smooth Mild Steel (Ribbed or Chrome Optional) |
| Cooling Type | Ventilated / Tropical Rated |
|---|---|
| Refrigeration Type | Ventilated / R134a |
| Temperature Range | 0°C to 4°C |
| Control Type | Digital Thermostat |
|---|---|
| Display Type | Digital Electronic |
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
