Blue Seal Evolution

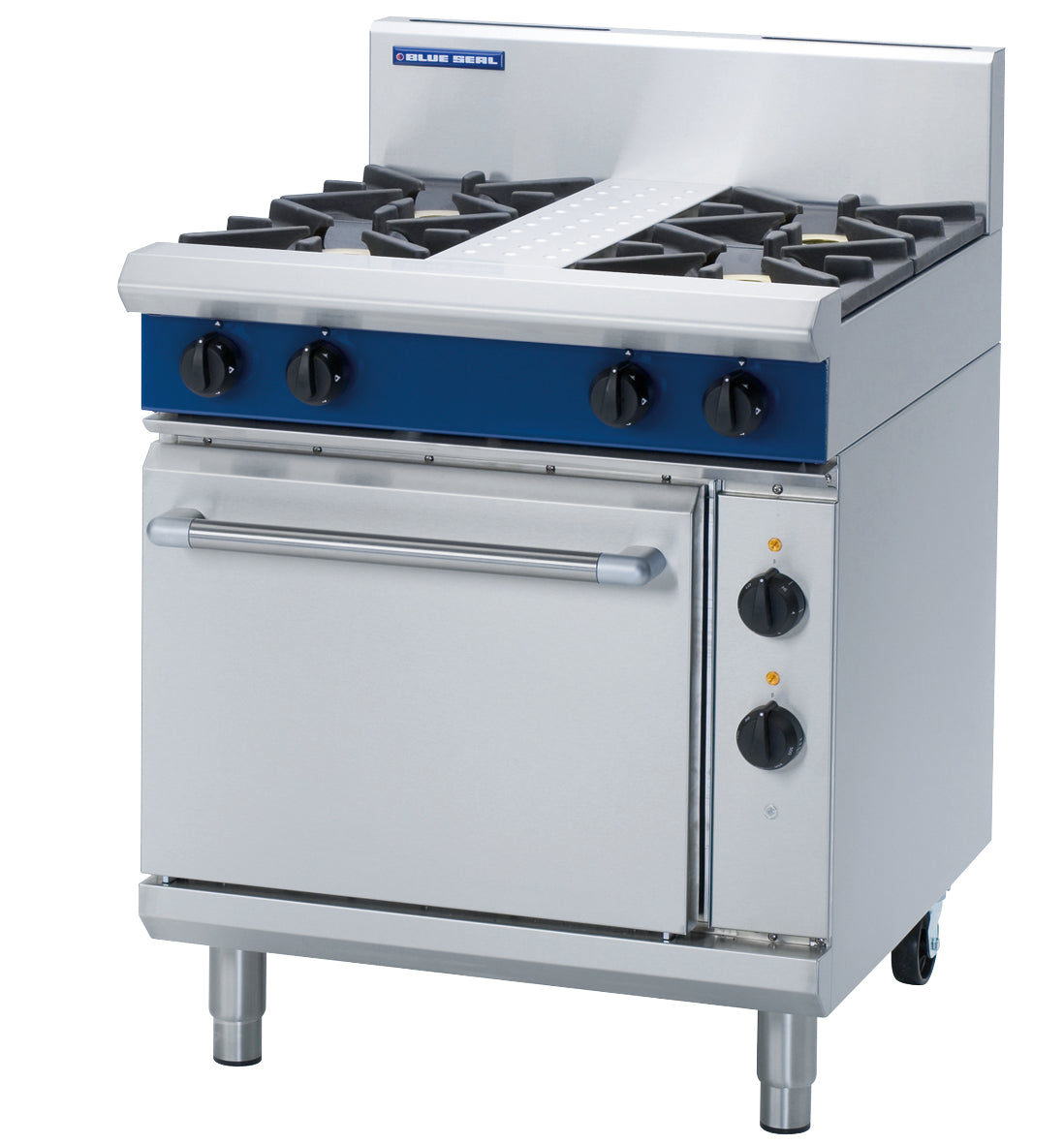

Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week
The Blue Seal Evolution GE505D is a robust and efficient 4-burner oven range designed for professional kitchens. This appliance features a gas cooktop with four 28MJ/hr open burners, providing high heat output for versatile cooking. The electric static oven, sized at 1/1 GN, offers precise temperature control in the range of 50-320°C with thermostatic control. The heavy-duty stainless steel finish ensures durability, and safety features such as flame failure protection on all burners enhance kitchen safety. The removable heavy-duty cast iron burners and vitreous enamel pot stands make cleaning and maintenance easy. The oven has a fully welded and vitreous enamelled liner, and the drop-down door with a welded frame includes a cool-touch stainless steel handle. With adjustable feet and two additional rollers, this appliance is easy to install and service, making it a reliable choice for professional kitchens.
Blue Seal Evolution GE505D is a professional 4-burner oven range built for high-volume kitchens that demand serious output without compromise. The combination of 28 kW gas burners paired with a convection oven delivers the flexibility to sear, simmer and bake simultaneously—ideal for restaurants, hotels and catering operations managing multiple cooking tasks during service.
Built from 304 stainless steel, this freestanding unit is engineered for durability in demanding commercial environments. The convection oven with two shelves (2/1 GN capacity) ensures even heat distribution and consistent results, while manual knob controls keep operation straightforward and reliable. Whether you're running a busy à la carte kitchen or high-capacity function venue, the GE505D delivers the thermal power and practical cooking space you need.
| External (W × D × H) | 750 × 812 × 1085 mm |
|---|---|
| Capacity | 2/1 GN |
| Cooking Surface Area | 750 x 480 |
| Oven Capacity | GN 2/1 |
| Product Weight (kg) | 150 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Integrated Oven |
| Colour | Stainless Steel |
| Door Type | Drop Down |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| No. of Shelves | 2 |
| Splash Back | Yes (165mm) |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 1 phase connection / 5.5kW |
| Power Supply | 220-240 Vac / 1P+N+E / 50Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 18766 BTU/h |
|---|---|
| Burner Output | 28 kW gas + 6kW electric oven |
| Burner/Element Output | 28 kW gas + 6kW electric oven |
| Fuel Type | Gas / Electric |
| Gas type | LPG / Natural Gas |
| Gas Connection | R 3/4 (BSP) male |
| Number of Burners | 4 |
| Oven Type | Convection |
|---|
| Temperature Range | Gas |
|---|
| Control Type | Manual Knob |
|---|---|
| Temperature Control | Thermostat / 110-270°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
