Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

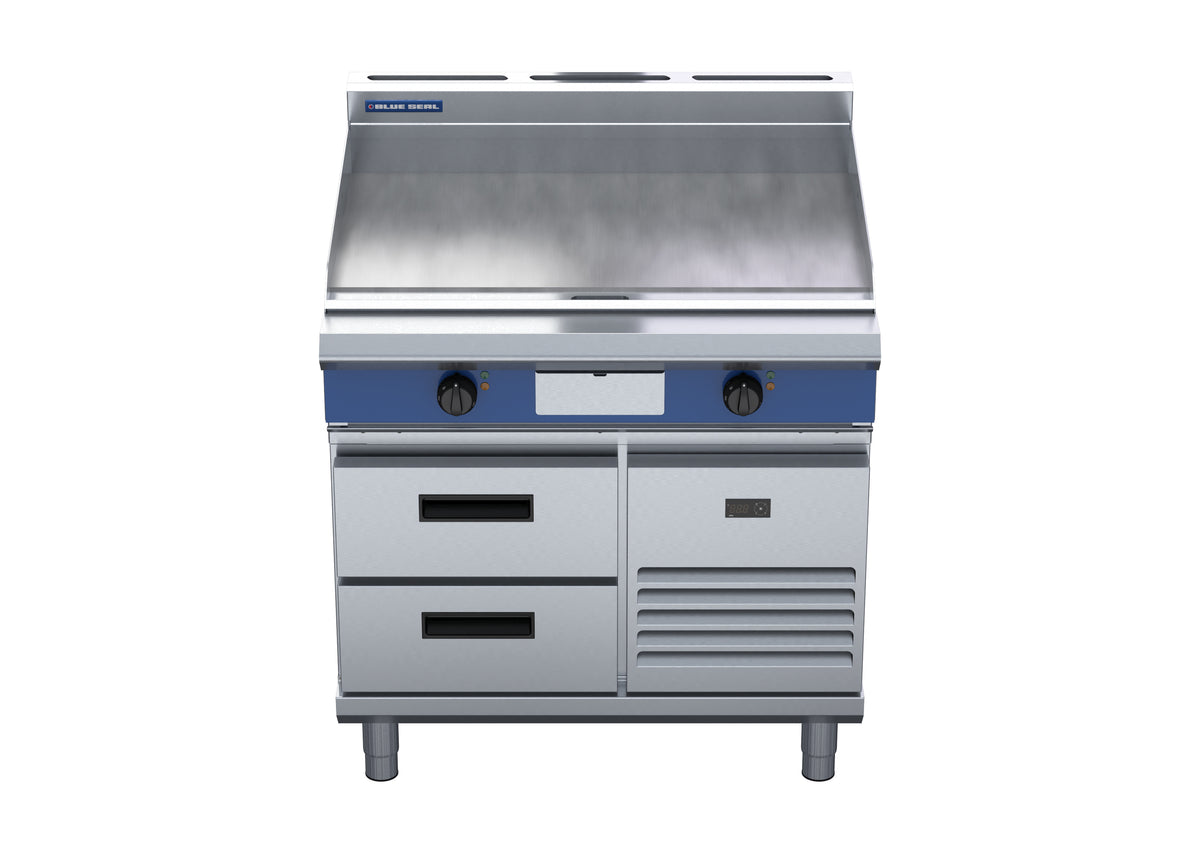

The Blue Seal Evolution EP516-RB is a versatile 900mm electric griddle with a built-in refrigerated base, making it an ideal choice for commercial kitchens requiring both griddling and refrigeration capabilities. The griddle features powerful 12kW heating elements and a 20mm thick griddle plate with a single temperature control zone and top weld sealed plates for precise cooking. The refrigerated base ensures a temperature range of -2 to +8°C, making it suitable for tropical climates, and includes two GN 1/1 drawers with a 100mm deep pan capacity. The unit is equipped with a stainless steel grease drawer, heavy-duty reinforced control knobs, and adjustable feet with 2 additional rollers for mobility. The option to choose between ribbed or chrome mirror plates, along with easy cleaning, installation, and service, makes the Blue Seal Evolution EP516-RB a reliable and efficient solution for professional kitchens.
Blue Seal Evolution EP516-RB is a professional 900mm electric griddle built for high-volume cooking in busy commercial kitchens. The heavy-duty mild steel cooking surface delivers exceptional heat retention and even cooking across all 6 burners, while the 10.8 kW output ensures consistent performance throughout service. Built from 304 stainless steel, it's engineered to withstand the demands of daily catering, hotels, and large-scale food operations.
What sets this model apart is the integrated refrigerated base—a game-changer for venues that need ingredient storage steps away from the cooking surface. The 2 x GN 1/1 drawers maintain 0–4°C, giving you instant access to fresh produce, proteins, or prepared components without leaving your station. Thermostatically controlled with a digital display, the griddle surface stays precisely regulated, while the tropical-rated ventilated cooling system performs reliably in any climate.
Freestanding and built to last, the EP516-RB combines cooking efficiency with practical workflow design—ideal for chefs who refuse to compromise on speed or quality.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2 x GN 1/1 Drawers |
| Cooking Surface Area | 900 x 480 |
| Product Weight (kg) | 90 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Refrigerated Base |
| Colour | Stainless Steel |
| Door Type | Drawer |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 2 |
| Splash Back | Yes (165mm) |
| Undershelf | Refrigerated Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 12kW 400-415Vac / 3P+N+E; Phase loading / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 40944 BTU/h |
|---|---|
| Burner Output | 10.8 kW |
| Burner/Element Output | 10.8 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 20 |
|---|---|
| Griddle Surface | Smooth Mild Steel |
| Cooling Type | Ventilated / Tropical Rated |
|---|---|
| Refrigeration Type | Ventilated / R134a |
| Temperature Range | 0°C to 4°C |
| Control Type | Thermostat |
|---|---|
| Display Type | Digital Electronic |
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
