Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

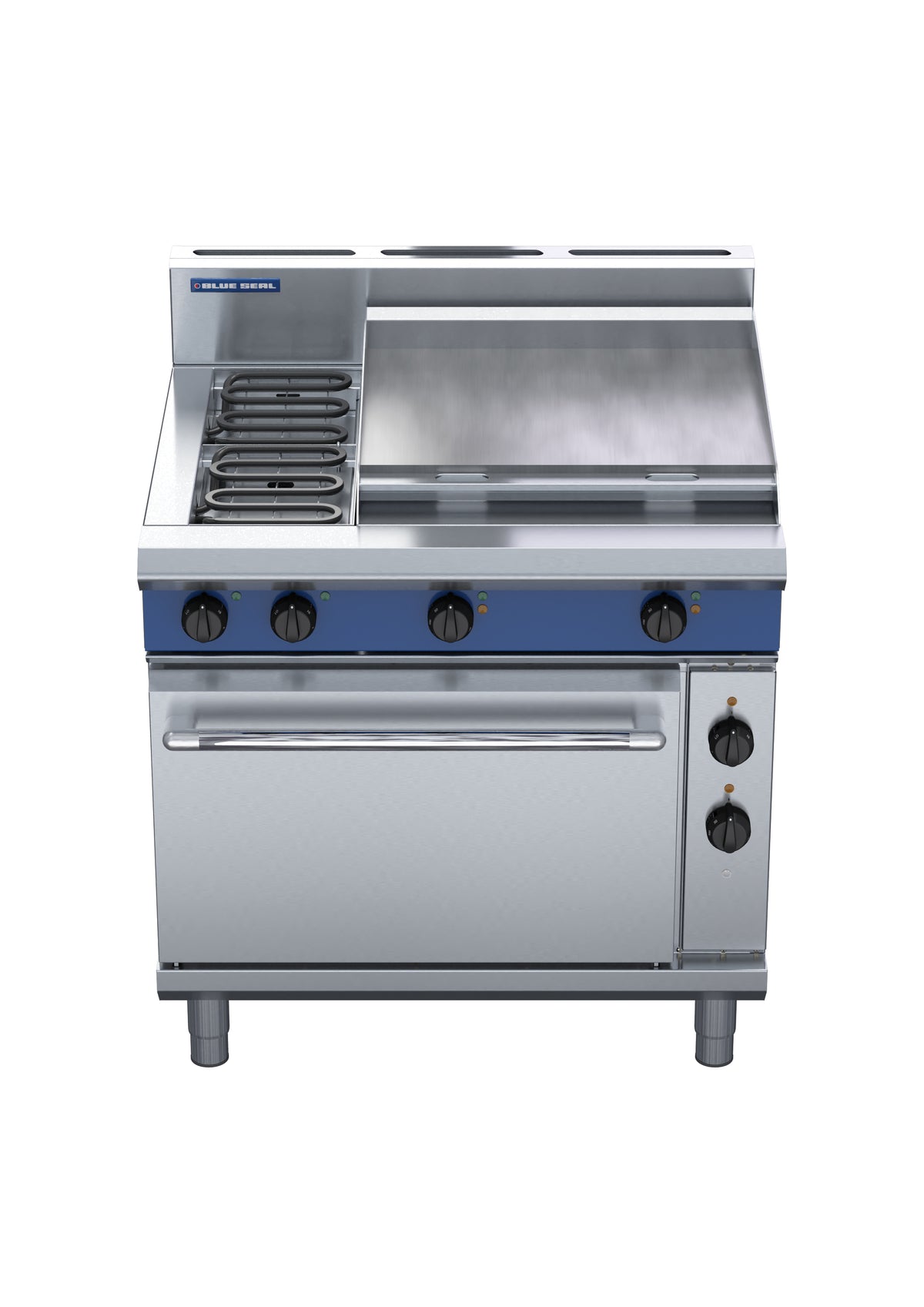

The Blue Seal Evolution E56B is a versatile 2 Radiant Element with 600mm Griddle Convection Oven Range designed for commercial kitchens. This electric range features a 2/1 GN electric convection oven paired with a cooktop that includes 2 x 2.4kW open radiant elements and 2 x 3.4kW griddle elements. The griddle is positioned on the right-hand side as standard, providing a flexible cooking space. The convection oven is equipped with a 6.5kW heating element and offers six temperature settings, including a simmer setting for precise control. The oven interior accommodates GN 2/1 trays with 4 position racking, allowing for versatile cooking options. The unit has a robust heavy-duty stainless steel finish, reinforced control knobs, and a drop-down door with a welded frame for easy access. The fully welded and vitreous enamelled oven liner ensures straightforward cleaning, and the cool-touch stainless steel door handle enhances safety. Adjustable feet and two additional rollers facilitate easy installation, mobility, and service. Optional hot plate elements can be added for expanded cooking capabilities.
Blue Seal Evolution E56B is a professional-grade cooking range built for high-volume commercial kitchens. Combining six powerful electric burners with a 600mm smooth griddle and a fan-forced convection oven in one compact unit, it delivers the flexibility serious chefs need without consuming excessive bench space. Constructed from 304 stainless steel and engineered in New Zealand, this range is built to handle the demands of busy restaurants, hotels and catering operations.
The dual-function cooktop—burners plus griddle—lets you sear, sauté and flat-cook simultaneously, while the convection oven with two shelves handles baking, roasting and finishing with consistent, even heat. Manual knob controls keep operation straightforward, and at 900mm wide, it slots neatly into most professional kitchen layouts without compromising cooking capacity or output.
Whether you're outfitting a new venue or upgrading existing equipment, the Evolution E56B delivers reliability, performance and versatility in a single, hardworking platform backed by Blue Seal's reputation for durability.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2/1 GN |
| Cooking Surface Area | 900 x 480 |
| Oven Capacity | GN 2/1 |
| Product Weight (kg) | 200 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Integrated Oven |
| Colour | Stainless Steel |
| Door Type | Drop Down |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| No. of Shelves | 2 |
| Splash Back | Yes (165mm) |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 20.9 kW max 400-415Vac / 3P+N+E; Phase loading / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 71311 BTU/h |
|---|---|
| Burner Output | 14.4 kW |
| Burner/Element Output | 14.4 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 12 |
|---|---|
| Griddle Surface | Smooth Mild Steel (Ribbed or Chrome Optional) |
| Oven Type | Convection |
| Temperature Range | Electric |
|---|
| Control Type | Manual Knob |
|---|---|
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
