Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

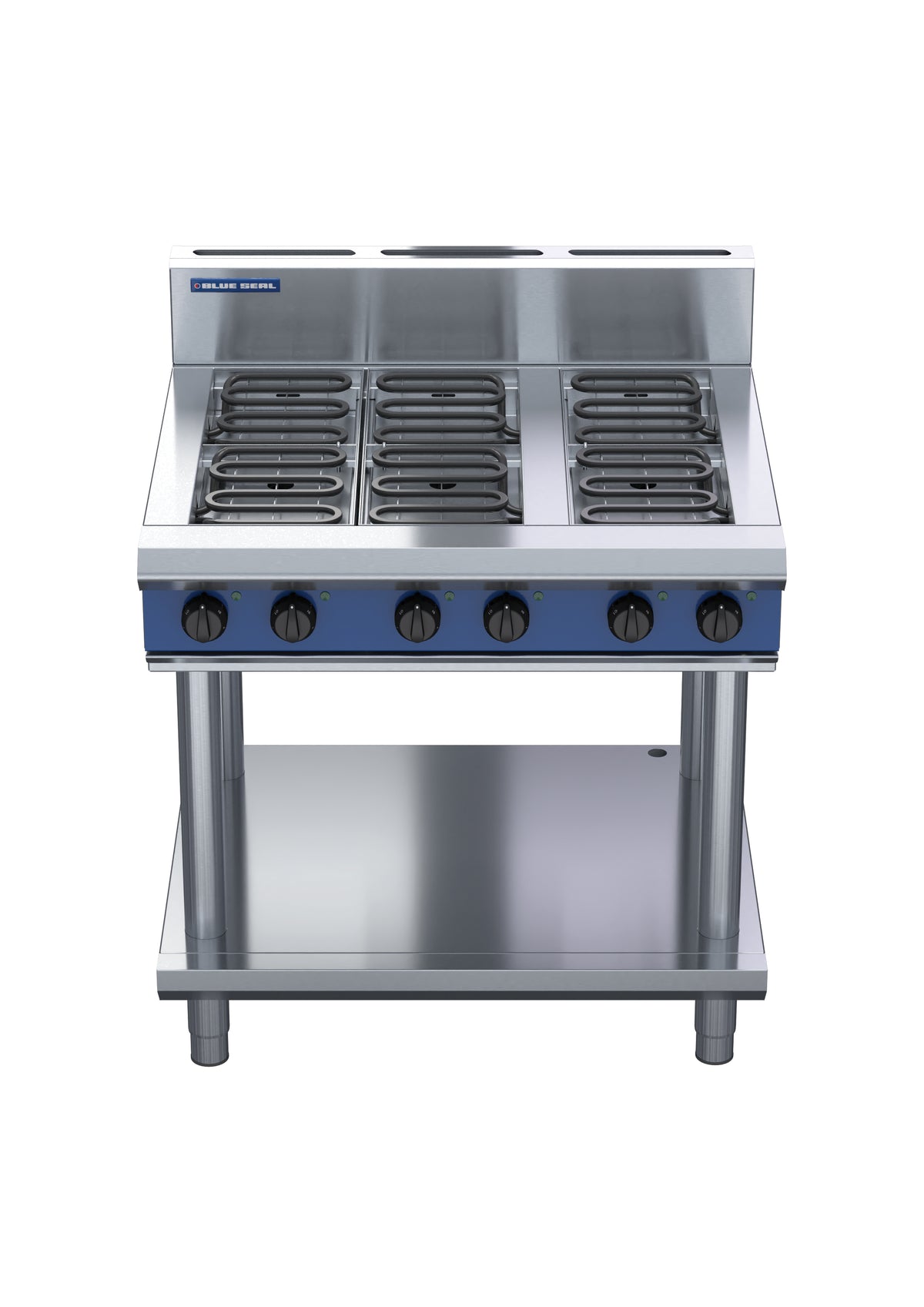

The Blue Seal Evolution E516D-RB is a versatile cooking solution with a 6 Radiant Element Cooktop on a refrigerated base. The cooktop features 6 x 2.4kW radiant elements, each equipped with energy regulator controls for precise heat management. The refrigerated base maintains a temperature range of -2 to +8 degrees Celsius, making it suitable for tropical climates. Additionally, the unit includes two GN 1/1 drawers with a 100mm deep pan capacity, providing convenient storage. The heavy-duty stainless steel finish, reinforced control knobs, adjustable feet, and 2 additional rollers ensure durability, stability, and ease of use. The E516D-RB is designed for easy cleaning, installation, and service and offers the option for additional hot plate elements based on specific cooking needs.
Blue Seal Evolution E516D-RB combines a powerful 6-element electric cooktop with integrated refrigerated storage, making it the ideal solution for kitchens where space and workflow efficiency matter. The open burners deliver 15.6 kW of direct heat output, giving you the performance you need for high-volume cooking without compromising on speed or consistency.
The refrigerated base houses two GN 1/1 drawers maintaining 0–4°C, so prepped ingredients, sauces and proteins stay instantly accessible and food-safe throughout service. Built from 304 stainless steel and tropical-rated for Australian conditions, this freestanding unit is engineered for durability in demanding commercial kitchens. Flame failure protection and manual knob controls keep operation straightforward and reliable.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2 x GN 1/1 Drawers |
| Cooking Surface Area | 900 x 480 |
| Product Weight (kg) | 75 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Refrigerated Base |
| Colour | Stainless Steel |
| Door Type | Drawer |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 2 |
| Splash Back | Yes (165mm) |
| Undershelf | Refrigerated Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 14.4 kW / 20A/phase / 3P+N+E / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 49133 BTU/h |
|---|---|
| Burner Output | 15.6 kW |
| Burner/Element Output | 15.6 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Cooling Type | Ventilated / Tropical Rated |
|---|---|
| Refrigeration Type | Ventilated / R134a |
| Temperature Range | 0°C to 4°C |
| Control Type | Manual Knob |
|---|---|
| Display Type | Digital Electronic |
| Temperature Control | Digital / -2°C to +8°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
