Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

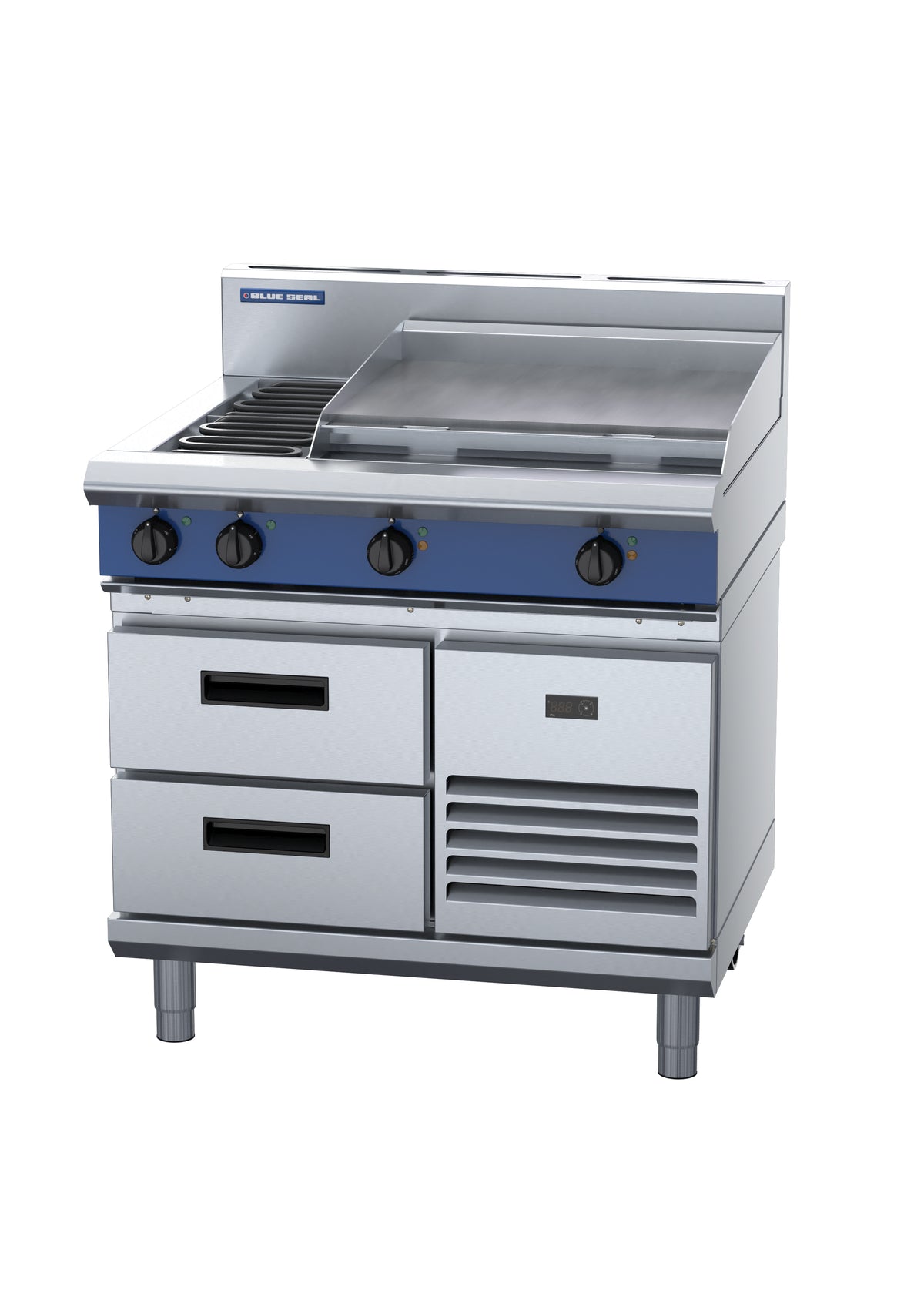

The Blue Seal Evolution E516B-RB is a versatile kitchen solution featuring a 2 Radiant Element Cooktop with a 600mm griddle on a refrigerated base. Equipped with 2 x 2.4kW radiant elements and 2 x 3.4kW griddle elements, it provides efficient and precise cooking. The radiant elements come with energy regulator controls for enhanced control. The refrigerated base maintains a temperature range of -2 to +8°C, making it suitable for tropical climates. It includes two GN 1/1 drawers with a 100mm deep pan capacity for convenient storage. The model boasts a heavy-duty stainless steel finish and reinforced control knobs for durability. With adjustable feet and 2 additional rollers, it provides flexibility in placement and easy mobility. Easy to clean, install, and service, the E516B-RB also offers optional hot plate elements, with the griddle on the right-hand side as standard for added convenience.
Blue Seal Evolution E516B-RB combines serious cooking capacity with integrated refrigeration in one robust unit. Built for high-volume kitchens, this electric cooktop features six burners delivering 15.6 kW of heat, plus a 600mm griddle plate ideal for breakfast service, searing and flat-top cooking. The thermostatically controlled griddle maintains consistent temperatures for reliable results shift after shift.
Underneath, two GN 1/1 refrigerated drawers (0–4°C, ventilated cooling) keep ingredients within arm's reach without dedicated bench space. Constructed from 304 stainless steel with a smooth mild steel griddle, this Evolution Series workhorse is built to withstand the demands of commercial kitchens. Tropical-rated cooling and manual knob controls keep operation simple and dependable.
Ideal for hotels, clubs, high-street restaurants and catering fit-outs where space and workflow efficiency matter. Freestanding design and compact 900mm width maximise kitchen real estate while delivering the output serious chefs expect.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2 x GN 1/1 Drawers |
| Cooking Surface Area | 900 x 480 |
| Product Weight (kg) | 90 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Refrigerated Base |
| Colour | Stainless Steel |
| Door Type | Drawer |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 2 |
| Splash Back | Yes (165mm) |
| Undershelf | Refrigerated Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 11.6 kW / 20A/phase max. / 3P+N+E / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 39579 BTU/h |
|---|---|
| Burner Output | 15.6 kW |
| Burner/Element Output | 15.6 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 12 |
|---|---|
| Griddle Surface | Smooth Mild Steel (Ribbed or Chrome Optional) |
| Cooling Type | Ventilated / Tropical Rated |
|---|---|
| Refrigeration Type | Ventilated / R134a |
| Temperature Range | 0°C to 4°C |
| Control Type | Manual Knob |
|---|---|
| Display Type | Digital Electronic |
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
