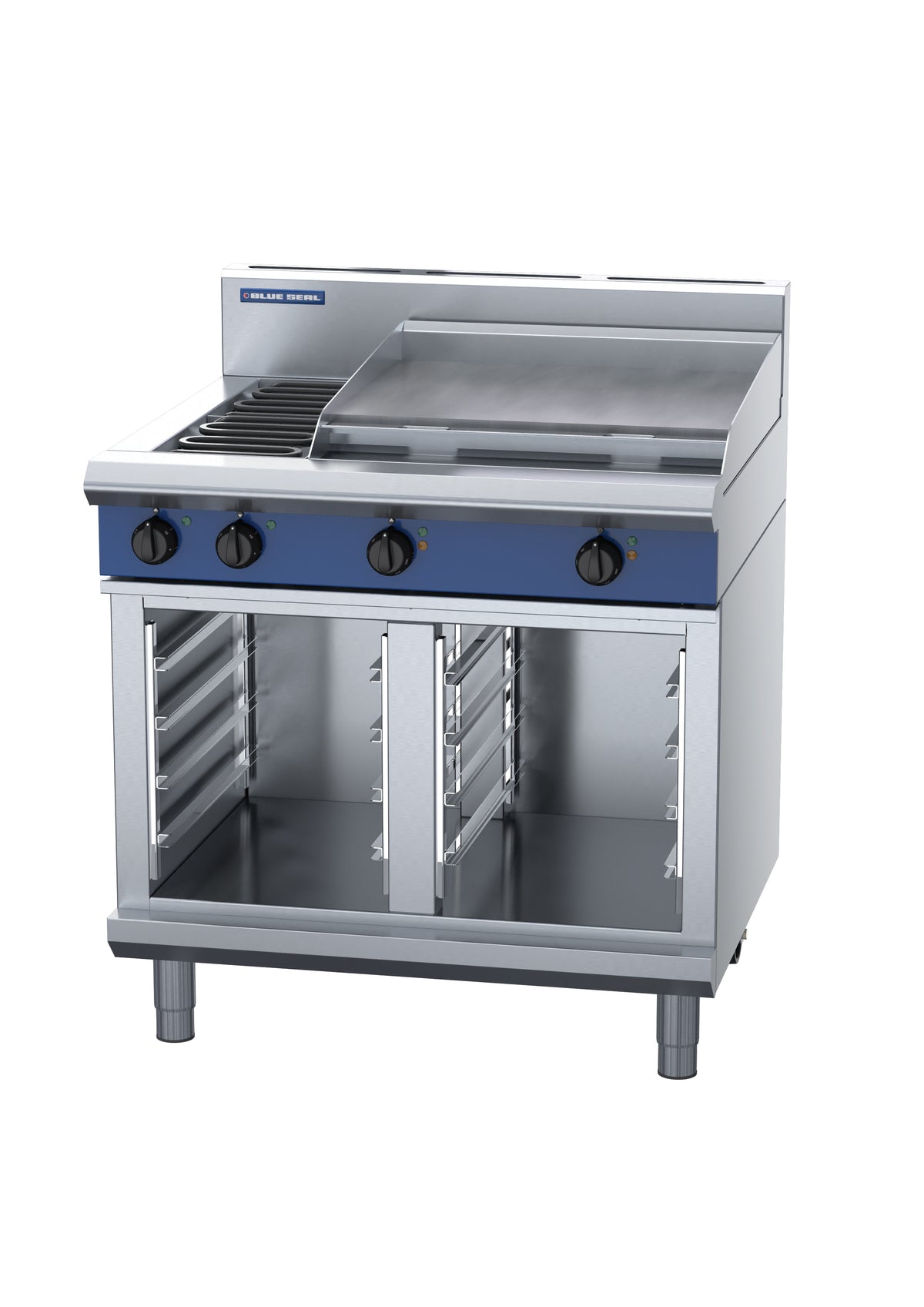

The Blue Seal Evolution E516B-CB is a versatile kitchen solution featuring a 2 Radiant Element Cooktop with a 600mm griddle on a cabinet base. Equipped with 2 x 2.4kW radiant elements and 2 x 3.4kW griddle elements, it provides efficient and precise cooking. The radiant elements come with energy regulator controls for enhanced control. The model offers the option of a GN 1/1 4-position racking kit for added versatility. It features a heavy-duty stainless steel finish and reinforced control knobs for durability. With adjustable feet and 2 additional rollers, it provides flexibility in placement and easy mobility. Easy to clean, install, and service, the E516B-CB also offers optional hot plate elements, with the griddle on the right-hand side as standard for added convenience.
Blue Seal Evolution E516B-CB is a heavy-duty electric cooktop that combines a 600mm smooth griddle plate with two separate 2.4 kW elements, giving chefs genuine flexibility on a compact 900mm bench footprint. Built in New Zealand from 304 stainless steel with a solid cabinet base, it's engineered for the rigours of busy commercial kitchens where reliability and durability matter.
The griddle's thermostatically controlled mild steel surface heats evenly and is ideal for pancakes, French toast, burgers, and anything that benefits from consistent, flat-top cooking. Pair that with two dedicated elements for saucepans and stock pots, and you've got a versatile workhorse that handles breakfast services, à la carte plating, and high-volume cookery without breaking a sweat.
With 11.6 kW total power and robust three-phase supply compatibility, the E516B-CB slots seamlessly into modern commercial fit-outs. It's the smart choice for cafés, hotels, takeaways, and catering operations that demand performance, space efficiency, and peace of mind.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Cooking Surface Area | 595 x 530 |
| Product Weight (kg) | 90 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Cabinet Base |
| Colour | Stainless Steel |
| Door Type | Hinged |
| Hinge Location | Left/Right |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| Splash Back | Yes (165mm) |
| Undershelf | Cabinet Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 11.6 kW / 20A/phase max. / 3P+N+E / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 230-240V / Single Phase |
| BTU Rating | 39579 BTU/h |
|---|---|
| Burner Output | 2.4 kW per element |
| Burner/Element Output | 2.4 kW per element |
| Fuel Type | Electric |
| Number of Burners | 2 |
| Griddle Plate Thickness | 20 |
|---|---|
| Griddle Surface | Smooth Mild Steel |
| Temperature Range | Electric |
|---|
| Control Type | Thermostat |
|---|---|
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
