Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

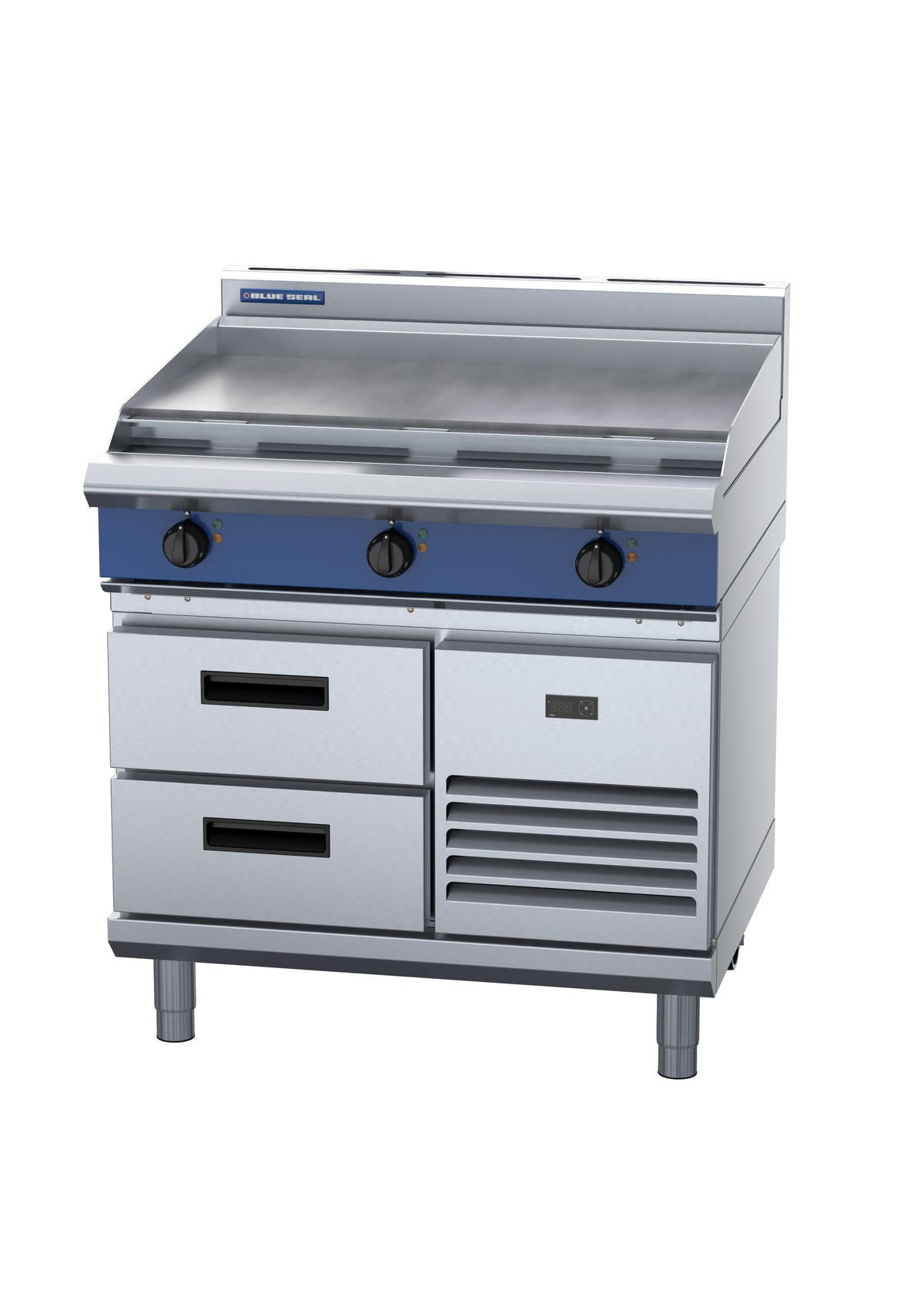

The Blue Seal Evolution E516A-RB is a versatile kitchen solution featuring a cooktop with a 900mm griddle on a refrigerated base. Equipped with 3 x 3.4kW griddle elements and radiant elements with energy regulator controls, it ensures efficient and precise cooking. The refrigerated base maintains a temperature range of -2 to +8°C, making it suitable for tropical climates. It includes two GN 1/1 drawers with a 100mm deep pan capacity. The model features a heavy-duty stainless steel finish and reinforced control knobs for durability. With adjustable feet and 2 additional rollers, it provides flexibility in placement and easy mobility. Easy to clean, install, and service, the E516A-RB also offers optional hot plate elements for customizable cooking options.
Blue Seal Evolution E516A-RB is a professional 900mm electric griddle built for high-volume cooking in busy commercial kitchens. The heavy-duty smooth mild steel plate delivers consistent heat distribution across six burners, making it ideal for breakfast services, à la carte cooking, and bulk plating. Constructed from 304 stainless steel throughout, this Evolution Series workhorse is built to withstand the rigours of daily professional use.
What sets the E516A-RB apart is its integrated refrigerated base—a game-changer for venues that need ingredient prep and storage at the cooking line. Two generously sized GN 1/1 drawers maintain precise 0–4°C temperatures with thermostat control, eliminating trips to the walk-in and boosting workflow efficiency. The ventilated refrigeration system is tropical rated, making it reliable in Australian kitchens year-round.
This is the smart choice for hotels, clubs, casual dining outlets, and catering fit-outs where space efficiency and operational speed matter. Digital electronic controls and freestanding installation mean minimal fuss during setup, while the robust engineering ensures years of reliable service in demanding environments.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2 x GN 1/1 Drawers |
| Cooking Surface Area | 892 x 530 |
| Product Weight (kg) | 90 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Refrigerated Base |
| Colour | Stainless Steel |
| Door Type | Drawer |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 2 |
| Splash Back | Yes (165mm) |
| Undershelf | Refrigerated Base |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 10.2 kW / 15A/phase max / 3P+N+E / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 230-240V / Single Phase |
| BTU Rating | 34802 BTU/h |
|---|---|
| Burner Output | See Power Rating |
| Burner/Element Output | See Power Rating |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 20 |
|---|---|
| Griddle Surface | Smooth Mild Steel |
| Cooling Type | Ventilated / Tropical Rated |
|---|---|
| Refrigeration Type | Ventilated / R134a |
| Temperature Range | 0°C to 4°C |
| Control Type | Thermostat |
|---|---|
| Display Type | Digital Electronic |
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
