Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

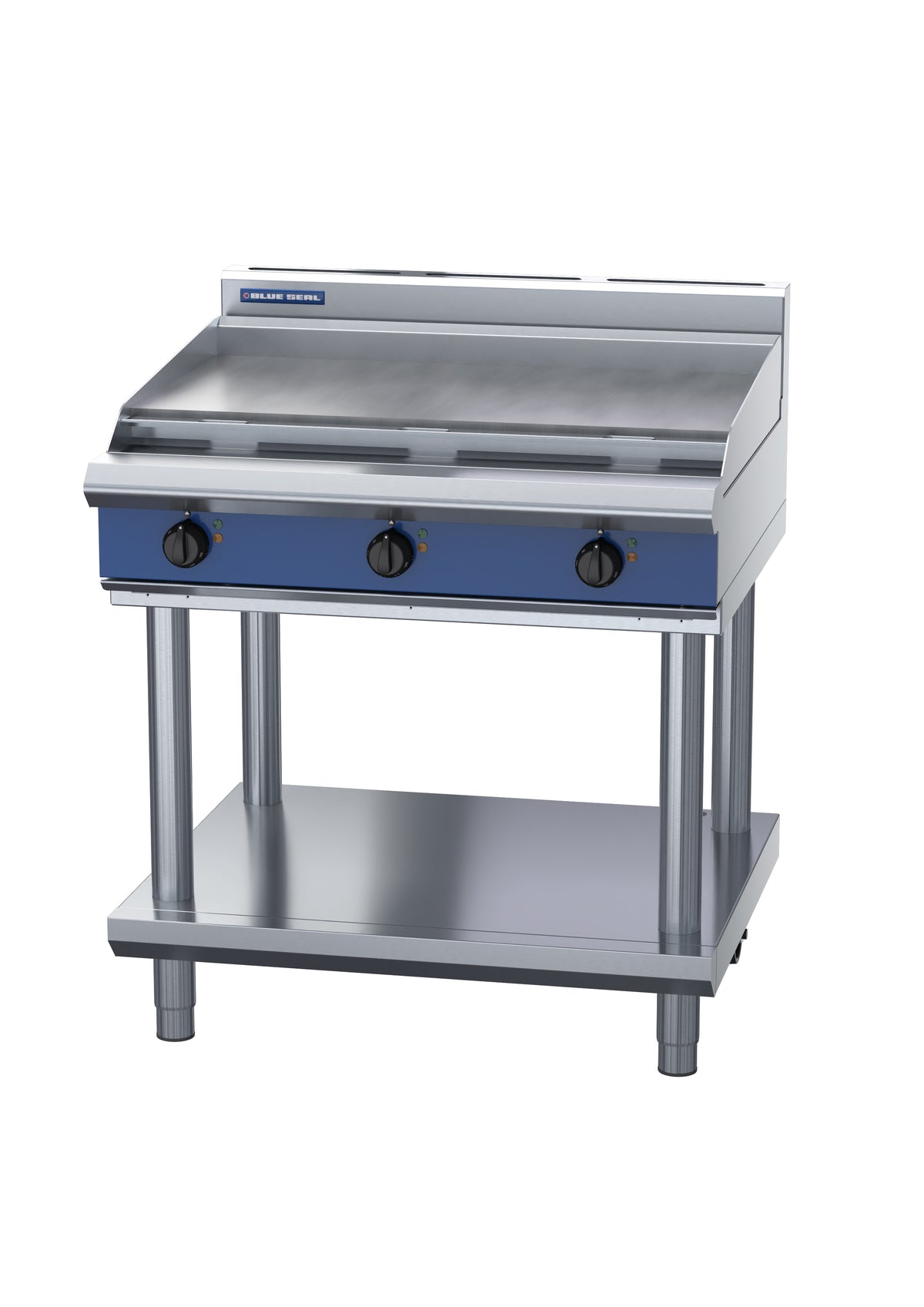

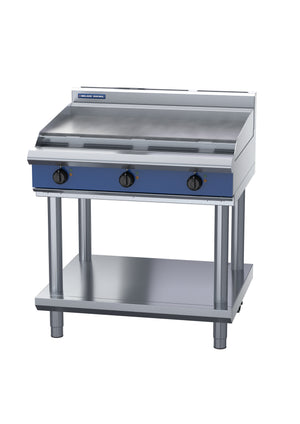

The Blue Seal Evolution E516A-LS is a versatile kitchen solution featuring a cooktop with a 900mm griddle on a leg stand. Equipped with 3 x 3.4kW griddle elements and radiant elements with energy regulator controls, it ensures efficient and precise cooking. The model is designed with a heavy-duty stainless steel finish and reinforced control knobs for durability. With adjustable feet and 2 additional rollers, it provides flexibility in placement and easy mobility. Easy to clean, install, and service, the E516A-LS also offers optional hot plate elements for customizable cooking options.
Blue Seal Evolution E516A-LS is a professional 900mm electric griddle designed for high-volume cooking in busy commercial kitchens. Built with 304 stainless steel construction and a heavy-duty smooth mild steel cooking surface, this freestanding unit delivers consistent, even heat across the entire plate—ideal for pancakes, burgers, proteins and vegetables. Thermostatically controlled for precision temperature management, it keeps your cooking consistent throughout service.
Purpose-built for venues that need reliable, efficient griddle capacity without the complexity of gas infrastructure, the E516A-LS operates on standard three-phase power and integrates seamlessly into any commercial fit-out. Its robust build quality and compact 900mm footprint make it perfect for cafés, hotels, contract caterers and high-street restaurants where griddle work is core to the menu.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Cooking Surface Area | 892 x 530 |
| Load Capacity | 50 |
| Product Weight (kg) | 90 |
| Assembly Type | Quick Assembly Design |
|---|---|
| Base Type | Leg Stand |
| Colour | Stainless Steel |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Shelves | 1 |
| Splash Back | Yes (165mm) |
| Undershelf | Yes (Suite Matching) |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 10.2 kW / 15A/phase max / 3P+N+E / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 230-240V / Single Phase |
| BTU Rating | 34802 BTU/h |
|---|---|
| Burner Output | See Power Rating |
| Burner/Element Output | See Power Rating |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 20 |
|---|---|
| Griddle Surface | Smooth Mild Steel |
| Temperature Range | Electric |
|---|
| Control Type | Thermostat |
|---|---|
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
