Blue Seal Evolution
Blue Seal Evolution G504D, 4 Burner Oven Range
600 × 812 × 1085mm
$7,224
ex GST$9,418
or $171.21 +GST / week

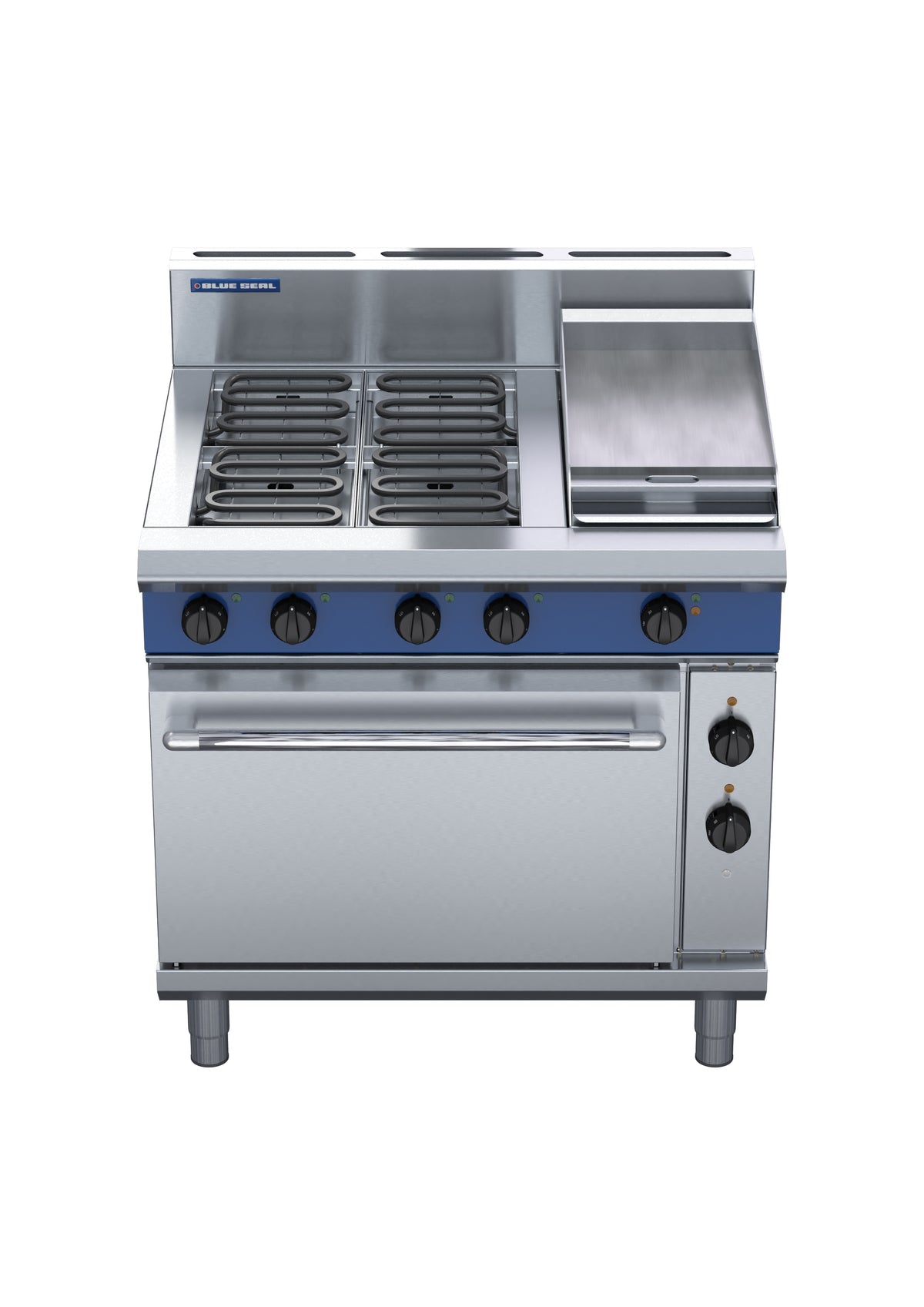

The Blue Seal Evolution E506C is a versatile 4 Radiant Element with 300mm Griddle Oven Range designed for professional kitchens. It features a 4 radiant element cooktop with a 300mm griddle on an electric range static oven, along with a 2/1 GN electric static oven. The appliance is equipped with 4 x 2.4kW open radiant elements, 1 x 3.4kW griddle element, and a 6.5kW oven heating element for a range of cooking options. The oven includes a six-temperature setting simmer feature, GN 2/1 capacity with 4 position racking, and heavy-duty stainless steel finish. Reinforced control knobs, a drop-down door with a welded frame, and a fully welded and vitreous enamelled oven liner ensure durability. Additional features include a cool-touch stainless steel door handle, adjustable feet with 2 additional rollers, and easy cleaning, installation, and service. Optional hot plate elements are available, and the griddle is positioned on the right-hand side as standard.
Blue Seal Evolution E506C is a robust freestanding range built for high-volume commercial kitchens that demand versatility and reliability. This 6-burner powerhouse combines four elements with a 300mm griddle and a 2/1 GN static oven, making it ideal for establishments that need to juggle multiple cooking methods simultaneously—think breakfast services, busy à la carte venues, and large catering operations.
Built from 304 stainless steel with industrial-grade construction, the Evolution E506C delivers consistent performance with 14.4 kW of burner output and an efficient electric oven that holds temperature reliably. The griddle features smooth mild steel as standard, with ribbed or chrome options available to suit your kitchen's specific needs. Manual knob controls keep operation straightforward and intuitive for your team.
Whether you're searing proteins, working multiple pans, or batch-cooking proteins and vegetables simultaneously, this New Zealand-built range handles the pace. It's the workhorse choice for fit-out companies specifying equipment for serious commercial kitchens where durability and balanced functionality matter most.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2/1 GN |
| Cooking Surface Area | 900 x 480 |
| Oven Capacity | GN 2/1 |
| Product Weight (kg) | 200 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Integrated Oven |
| Colour | Stainless Steel |
| Door Type | Drop Down |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| No. of Shelves | 2 |
| Splash Back | Yes (165mm) |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 19.5 kW / 3P+N+E; Phase loading / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 66534 BTU/h |
|---|---|
| Burner Output | 14.4 kW |
| Burner/Element Output | 14.4 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 12 |
|---|---|
| Griddle Surface | Smooth Mild Steel (Ribbed or Chrome Optional) |
| Oven Type | Static |
| Temperature Range | Electric |
|---|
| Control Type | Manual Knob |
|---|---|
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
| Destination | Lead time |
|---|---|
| Melbourne metro — DHT truck | 1–3 business days if in stock |
| Regional Victoria | 2–4 business days |
| Sydney / Adelaide metro | 3–6 business days |
| Brisbane metro | 4–7 business days |
| Perth / NT / TAS | 7–14 business days |
Estimated delivery for items in stock. Melbourne metro delivery on our own truck is estimated at 1–3 business days. Items that are not in stock, or are made to order, take longer — we confirm the lead time when we quote.
Our delivery network also services Sydney, Canberra, Brisbane and Adelaide, and other areas on request. Delivery is quoted per order, and we confirm the delivery date when we quote freight. The times below are estimates only, not a guaranteed delivery date.
