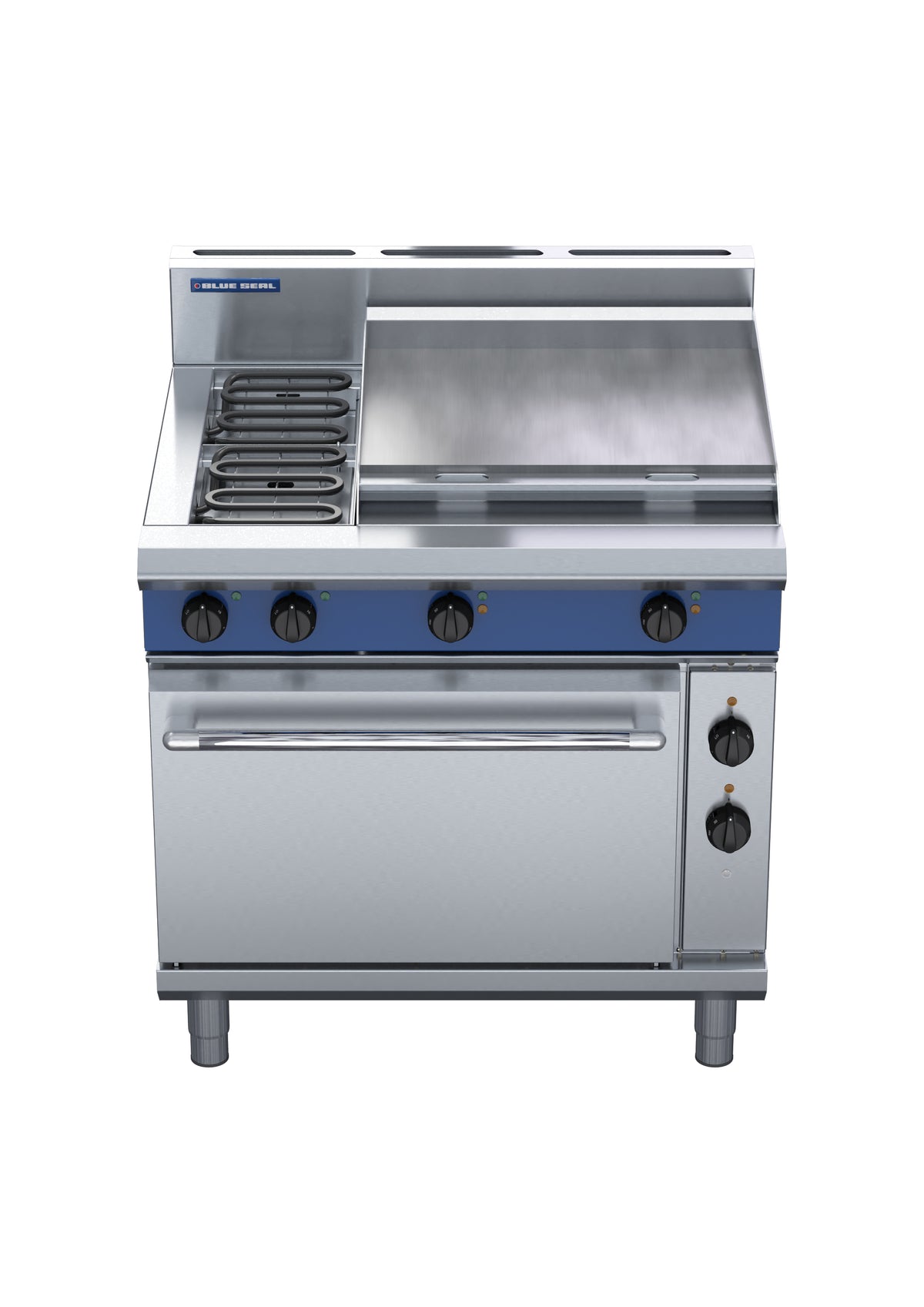

The Blue Seal Evolution E506B is a powerful 2 Radiant Element with 600mm Griddle Oven Range designed for professional kitchens. It features a 2/1 GN electric static oven, 2 x 2.4kW open radiant elements, and 2 x 3.4kW griddle elements for versatile cooking. With a 6.5kW oven heating element and a six-temperature setting simmer option, it offers precise control. The GN 2/1 capacity with 4 position racking, heavy-duty stainless steel finish, and reinforced control knobs enhance durability and functionality. The oven includes a drop-down door with a welded frame and a fully welded and vitreous enamelled liner. Additional features include a cool-touch stainless steel door handle, adjustable feet with 2 rollers, and easy cleaning, installation, and service. Optional hot plate elements are available, and the griddle is positioned on the right-hand side as standard.
Blue Seal Evolution E506B, 2 Element with 600mm Griddle Oven Range is a robust, all-in-one cooking solution built for high-volume commercial kitchens. This electric range combines six powerful burners with a 600mm griddle top and a convection/static oven cavity, giving you the flexibility to sear, griddle and bake simultaneously. The smooth mild steel griddle surface delivers excellent heat distribution and even browning across breakfast services, lunch rushes or à la carte cooking.
Built from 304 stainless steel and engineered in New Zealand, the E506B is built to last in demanding hospitality environments. Manual knob controls keep operation simple and reliable, whilst the static oven with two 1/2 GN capacity shelves handles everything from roasted proteins to baked goods and holding. At 900mm wide, it's compact enough for most kitchen layouts without compromising performance or cook space.
Ideal for hotels, restaurants, pubs and catering venues that need serious output from a single appliance, the Evolution E506B combines durability, versatility and straightforward handling in one professional-grade unit.
| External (W × D × H) | 900 × 812 × 1085 mm |
|---|---|
| Capacity | 2/1 GN |
| Cooking Surface Area | 900 x 480 |
| Oven Capacity | GN 2/1 |
| Product Weight (kg) | 200 |
| Assembly Type | Pre-Assembled |
|---|---|
| Base Type | Integrated Oven |
| Colour | Stainless Steel |
| Door Type | Drop Down |
| Hinge Location | Left Hinged (Drop Down) |
| Installation Type | Freestanding |
| Material | 304 Stainless Steel |
| No. of Doors | 1 |
| No. of Shelves | 2 |
| Splash Back | Yes (165mm) |
| Electricity Consumption | See Power Rating |
|---|---|
| Power Rating | 18.1 kW / 3P+N+E; Phase loading / 400-415Vac / 50/60Hz |
| Power Supply | 230-240 Vac / 1P+N+E / 50/60 Hz |
| Voltage/Phase | 400-415V 3P+N+E |
| BTU Rating | 61757 BTU/h |
|---|---|
| Burner Output | 14.4 kW |
| Burner/Element Output | 14.4 kW |
| Fuel Type | Electric |
| Number of Burners | 6 |
| Griddle Plate Thickness | 12 |
|---|---|
| Griddle Surface | Smooth Mild Steel (Ribbed or Chrome Optional) |
| Oven Type | Static |
| Temperature Range | Electric |
|---|
| Control Type | Manual Knob |
|---|---|
| Temperature Control | Thermostat / 90-300°C |
| Warranty | 12 months — Parts and Labour |
|---|---|
| Country of origin | New Zealand |
| Series | Evolution Series |
